See the drone,
then hit it.

01The problem

A drone crossing a field at 4–10 pixels is invisible in a single frame — to a detector and to a human. That is not a tuning problem. There is no threshold that finds it, because in one frame there is nothing there to find.

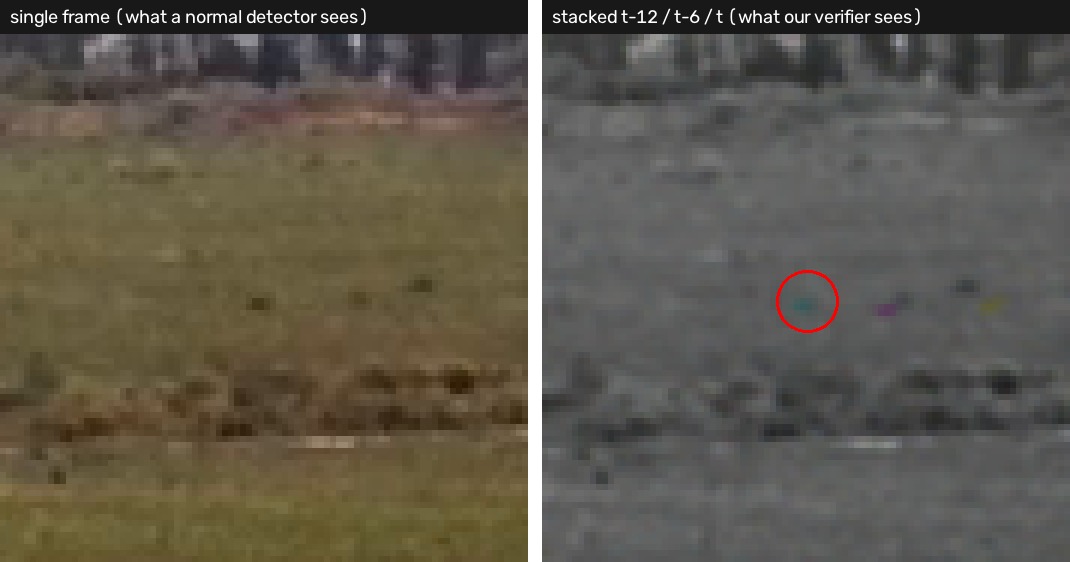

It also formalises exactly how the human labeller found the drone in the first place: flip between frames and watch what moves. Nearly every design decision downstream follows from this — including the ones about what cannot work.

02The whole method, in one picture

Two halves of one problem, sharing a coordinate and geometry vocabulary. The first half turns pixels into a bearing. The second turns a bearing into a collision. They meet at one small dataclass, and that boundary is what makes the accuracy attributable.

03Results

Every number below has an artifact behind it in the repository. The two halves are scored apart because they fail for different reasons and are fixed by different work.

Real video Detection

Both shipped models are scored on 10_06.mp4 — a video never trained on and never used for model selection. Matching is by centre distance (τ = 12 px), because IoU is meaningless on a 4-pixel box.

These are the causal numbers — frame by frame, no look-ahead, which is the only mode an aircraft can run. On the full training video PC-MAX scores 0.998 / 0.998 causally. A surveillance mode allowed to interpolate across gaps using later frames reaches 1.000 across the board for both models, and it is reported next to the causal row in round 3 rather than in the headline. Every labelled frame is hit within 12 px with zero false positives; PC-MAX misses at most 1 labelled frame in 885. fps measured on an RTX 5070. The honest scope of that 1.000: it is one location, one drone, two videos. The generalisation work is separate and scored separately — see below.

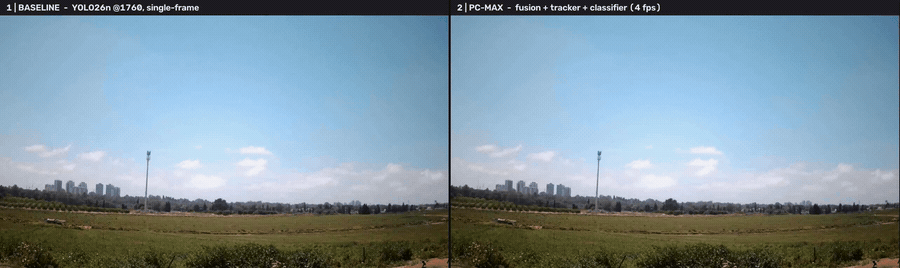

Against a strong conventional baseline

A YOLO26n trained on a real multi-scene drone dataset (imgsz 1760, 300 epochs), on the same unseen video:

Generalising: one model, many datasets, a moving camera

Two near-perfect models on one location leave an obvious question open. Public tiny-drone datasets (ARD-MAV and NPS-Drones — air-to-air, moving cameras) were merged with the project's own footage into one combined training set, and a round-7 model learns RGB + motion fusion (a 4-channel [R,G,B,ego-motion] input) with an NWD tiny-object loss.

Combined training takes NPS from 0.21 → 0.81 and the low-contrast black drone from 0.00 → tracked. Honest limit: on that black drone the earlier regime-adaptive pipeline still tracks marginally better (coverage 1.000 vs 0.875) using classical motion, and fusion's motion channel produces more false tracks on moving cameras. So there is no single winner — the regime pipeline stays the pick for the black drone, and fusion is the pick for one-model generalisation.

Against the published state of the art

Every published leader on these benchmarks is a specialist — one dataset, one set of weights, scored at home — and off home turf they collapse: TransVisDrone holds NPS-Drones at 0.95 and drops to 0.15 on ARD100. This project's own round-4 specialist did exactly the same (ARD-MAV 0.76 → NPS 0.15 → this repo's drone 0.00) — measuring that collapse is what forced the combined training. The 2025 anti-UAV survey (arXiv 2504.11967) lists no unified multi-dataset model; that is the niche this generalist occupies.

Published numbers are AP@0.5 IoU on each paper's own split; ours are centre-distance AP (τ = 12 px) on whole-video held-out splits — IoU is unstable on a 6 px box, so read this as a class comparison, not a leaderboard entry. The claim is not that any specialist is beaten at home; it is that no published method holds specialist-class accuracy across several tiny-drone datasets with one set of weights — and this one is real-time with it: 74 fps for the shipped edge model (TensorRT FP16), 107–122 fps for the generalist edge pipeline on a moving camera, against a published range of ~1 fps (Dogfight) to 147 (GLAD).

Isaac Sim Interception

The mission: hold over a city, an intruder arrives from any of 360°, commits to a surveyed building and does not break off when it is seen. There are two ways to lose and they are scored separately — the interceptor can miss the drone, or it can arrive after the drone has already flown into the wall.

The earlier mission — one camera, chase and intercept

Before the ring and the city, the same guidance law was flown as a straight pursuit: one forward-facing camera, an intruder crossing or fleeing, and nothing to defend. 54 of 62 engagements intercepted — 87.1%, 95% CI [76.6%, 93.3%] (Wilson), across two environments, twelve arrival directions and ten evasion policies. Mean true miss distance 0.239 m; 93% inside half a metre.

The eight failures are 3 that never acquired and 5 that acquired and did not close — and since the aim bias is statistically centred on both axes (vertical −1.8 cm, t = −1.27; lateral −0.7 cm, t = −0.19), none of them is an aiming error. Against a perfect sensor the same law is 120/120 on the stress matrix and 31/31 on the mission suite. Running both on identical scenarios is the point of the split: it settles attribution rather than arguing it.

04Seeing three pixels

At 140 m an intruder is 3.1 px across — 2.9 px by 150 m — and no appearance model will find it. It has to be found anyway, because detection range converts directly into how much ground one interceptor can defend.

What finds it is the other half of this repository. An interceptor on overwatch has four stationary cameras looking at a city that is not going anywhere — so a per-pixel background model sees the target's whole contrast instead of the sliver of it that changes between two frames.

Reliable to 140 m against 100 m, which is a defended radius of 70 m against 46 m — a 52% larger bubble from one change of detector. Both run at full resolution with no morphological opening, and that detail cost a day: an opening is an erosion followed by a dilation, so a 3×3 kernel deletes anything smaller than 3×3 — and at 100 m the target is smaller than 3×3. The step that exists to remove speckle was removing the drone.

Finding it was never the hard part

That same empty sky returns about 50 motion contacts a frame, so the drone is one in fifty — and it is neither the brightest nor the most persistent. It is the least of both, because it is 3 px across and detected on half the frames while a renderer artefact fires on nine tenths of them. A single-target tracker seeded on the first corroborated pair therefore locks onto clutter and, being single-target, never reconsiders. Measured live: the seeker held a confident track on 86–97% of frames and was on the drone for 0% of them, in every engagement.

No single-frame gate fixes that, and that is measured rather than assumed. Every detection on live Rivermark was scored — 185 on the drone, 693 on clutter — against four per-blob statistics, and asked the only question a gate cares about: at a threshold that keeps the true detections, how much clutter survives?

You have to throw away 30% of the real detections before clutter falls to half. What separates them is not a property of one frame — it is behaviour over seconds: an artefact sits still and a drone flies, and from an interceptor holding station that is unambiguous, because a fixed object's bearing is exactly constant. So every contact gets a cheap running record, and the Kalman filter is handed only one whose recent bearings fit a constant angular rate with a real rate and a small residual.

Where the time goes — and it is no longer the network

Two configurations were timed, and the honest first sentence is that they are not a controlled comparison: they differ in the model, in the input, and in how many cameras the network sees.

Nose column: mean over the 62 recorded engagements, detector=fusion (METRICS.md). Ring column: mean over the 3 recorded live-Rivermark engagements, detector=yolo (city_pipe/results.json), spread 198–259 ms.

So the appearance stage did get about eight times cheaper — but a network with a ninth of the parameters is doing most of that work, not the crop, and separating the two would take the same model run both ways, which is a measurement this repository does not have. What the numbers do settle is where the time goes now: the ring loop is 90% classical motion detection, four 2048×704 images a tick in a city that returns ~50 contacts a frame. The network is no longer the thing to optimise, and neither configuration meets the 50 ms budget.

The crop's other benefit is not about speed and is measured separately: it runs at native scale, where a full-frame pass has to fit 2048 px into the network's input and shrinks a 9 px drone to 8 — the detector was always the thing that ran out of pixels first.

05What it looks like

Sixteen recorded engagements and four full-length detection runs. See the whole gallery →

06What is not finished

Stated here rather than buried, because a result you cannot see the edge of is not a result.

• The loop is not real-time yet, and the detector is 100% of the reason. Aiming the network at a 640 px crop instead of the whole frame took perception from 130.9 ms to 53.9 ms; the tracker and guidance together are still 0.16 ms. The remaining gap to a 50 ms budget is a pure inference problem — the same TensorRT FP16 route that took the detection half from 4 fps to 74 fps applies unchanged.
• Latency compensation must be calibrated on hardware, not inherited. The simulator's loop is synchronous, so its true capture-to-command age really is zero. On an aircraft running at 7.6 fps it is ~130 ms, and the difference between declaring it and ignoring it is 36/42 versus 17/42 intercepts.
• Drone-vs-bird is the frontier for the detection half. At a few pixels, motion cannot separate a bird from a drone — only appearance can, and appearance is exactly what is weakest at that scale. A learned drone-vs-bird track classifier (appearance + kinematics + flap signature over the whole track) is the single next lever.
• Four filters that did not work are recorded with their measurements in the source: static-object rejection, motion-channel gating, a flat confidence threshold, and a lock-level score probation. Each is an obvious idea that fails for a specific, documented reason.
• No flight test. Interception numbers are Isaac Sim, closed loop, at 20 Hz, with a rendered town and rendered aircraft. Detection numbers are real video. The two are never mixed on this site.

07Run it yourself

Detection runs on any video with no simulator. The mission needs Isaac Sim, but the same closed loop also runs headless with arithmetic instead of a renderer — 120 scenarios in 1.2 s. 540 unit tests cover the geometry, guidance, dynamics and ring.

# the two shipped detection models, on any video
python final/run_final.py --video V.mp4 --profile pc-max  --out out_pc    # most accurate
python final/run_final.py --video V.mp4 --profile edge-rt --out out_edge  # real-time

# the generalist multi-dataset pipeline
python tools/run_max.py --profile v1 --weights work/runs/combined-m-p2-640/weights/best.pt \
    --video V.mp4 --out out_max

# the whole mission, headless: 24 arrival bearings in seconds, no renderer
python -m pursuit.sandbox --suite city --ring

# the guidance law alone, against a perfect sensor
python -m pursuit.sandbox --suite stress      # 120/120 in 1.2 s

# the closed loop against Isaac Sim, four-camera ring
docker exec -d isaac-sim bash -c "cd /tmp/dev/dronedet && /isaac-sim/python.sh \
    simulators/pegasus/scripts/pursuit_server.py --scene rivermark --cameras ring"
python -m pursuit.tools.ring_probe --range 40         # 0 blind bearings of 120
python -m pursuit.tools.record_city --detector oracle # 24/24, 0 struck
